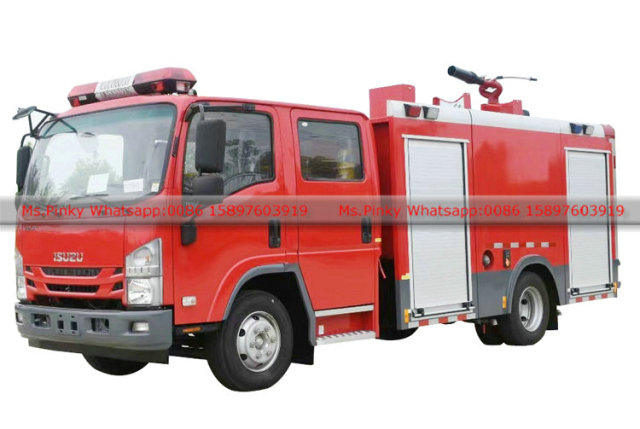

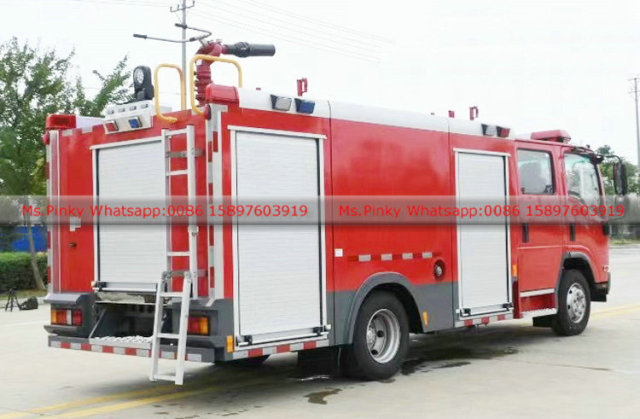

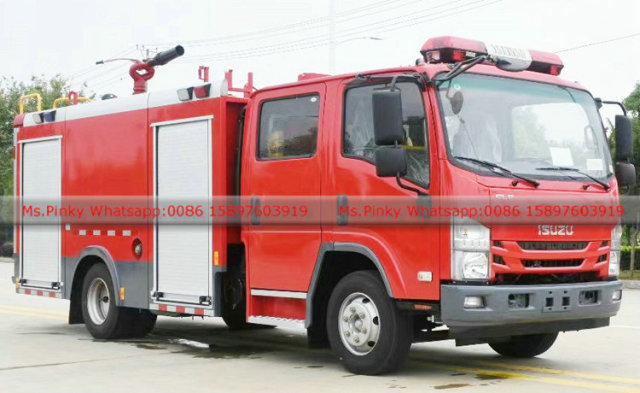

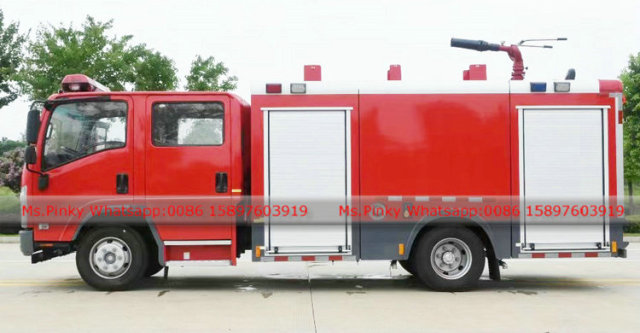

ISUZU Fire Truck |
||
|
General parameter |
Vehicle Brand |
ISUZU Fire Truck |
|
Overall Dimension |
7000*2270*3080mm |
|
|
Rated Payload |
35000kgs |
|
|
Kerb Weight |
6400kgs |
|
|
Cab |
Cabin |
2+3 passengers, power steering |
|
Air Condition |
With |
|
|
Engine |
Model/Rated Power |
4HK1-TC51 |
|
Displacement/ power |
5193L / 140KW,190HP |
|
|
Emission Standard |
Euro 5 |
|
|
manufacturer |
ISUZU motor Co., Ltd. |
|
|
Diesel 4-stroke, 4-cylnder in line with water cooling, turbo charging |
||
|
Chassis |
driving type |
4*2 |
|
Wheel base |
3815mm |
|
|
Front/rear tread |
1680/1650 |
|
|
Front axle |
4T front axle |
|
|
Rear axle |
7T rear axle |
|
|
Gear box |
ISUZU MLD SIX forwards |
|
|
leaf spring |
8/10+6 |
|
|
Type & Size of Tyre |
235/75R17.5 |
|
|
Max Speed |
90-120Km/h |
|
|
Superstructure |
Water Capacity |
2500Liters |
|
Foam Capacity |
1000Liters |
|
|
Tank material |
Carbon steel |
|
|

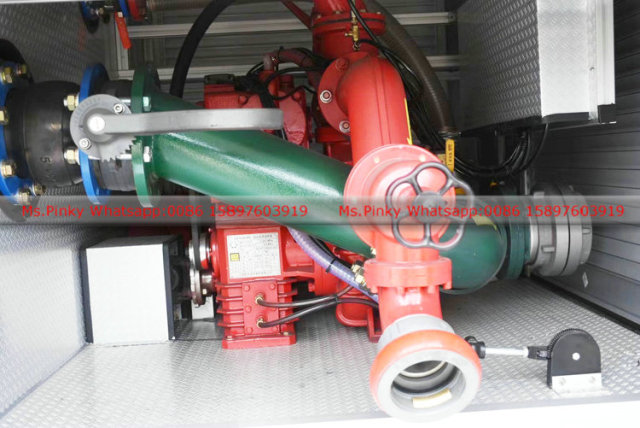

Fire Pump |
CB10/40 Flux: 40L/s Suction depth: ≥7m Suction time: ≤35s |
|
|

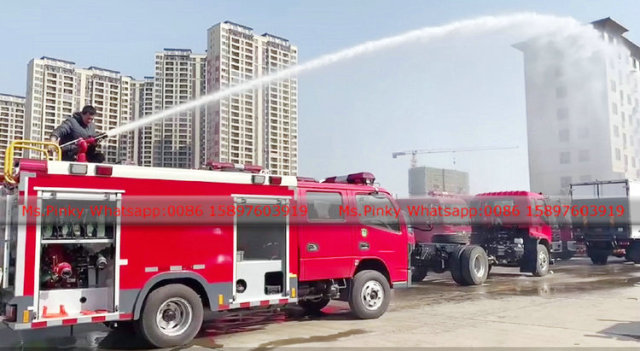

Fire Monitor |
PL32 Range: water≥55m , Foam: water≥45m Pressure: 1.0Mpa. Rotation angle of fire fighting:360 |
|
|
PTO |
Sandwich PTO, splashing-type lubricate, can put out fire when driving. |
|
|
color |
The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck. |
|
Set of fire technical equipment
|
No. |
Name |
Specification |
Q’t |
Remark |
|
1 |
Electric Siren |
|
1 Nos |
|
|
2 |
Emergency rotation lamp |
|
1 Nos |
|
|
3 |
Fire axe |
|
1 Nos |
|
|
4 |
Fire hook |
|
1 Nos |
|
|
5 |
Medium pressure water gun |
|
1 Nos |
|
|
6 |
Fire fighting Nozzle |
|
1 Nos |
|
|
7 |
Fire hose (B/S system) |
Ø65×20m |
4Nos |
|
|
8 |
suction pipe |
Ø100×2m |
4PCS |
|
|
9 |
Water filter (100mm) and guide rope |
|
2Nos |
|
|
10 |
Suction pipe wrench (100m) |
|
2 Nos |
|
|
11 |
Fire Hydrant Wrench |
|
2 Nos |
|
|
12 |
tool |
GT1 |
1PC |
|
|
13 |
fire extinguisher |
|
1set |
|
